Zinchab – 72 m² 2-Bed Off-Grid Chalet

Efficiency. Simplicity. Optimisation.

Optimised for modularity in remote/regional settings—ideal for DIY builders and off-grid enthusiasts seeking efficient, no-fuss construction.

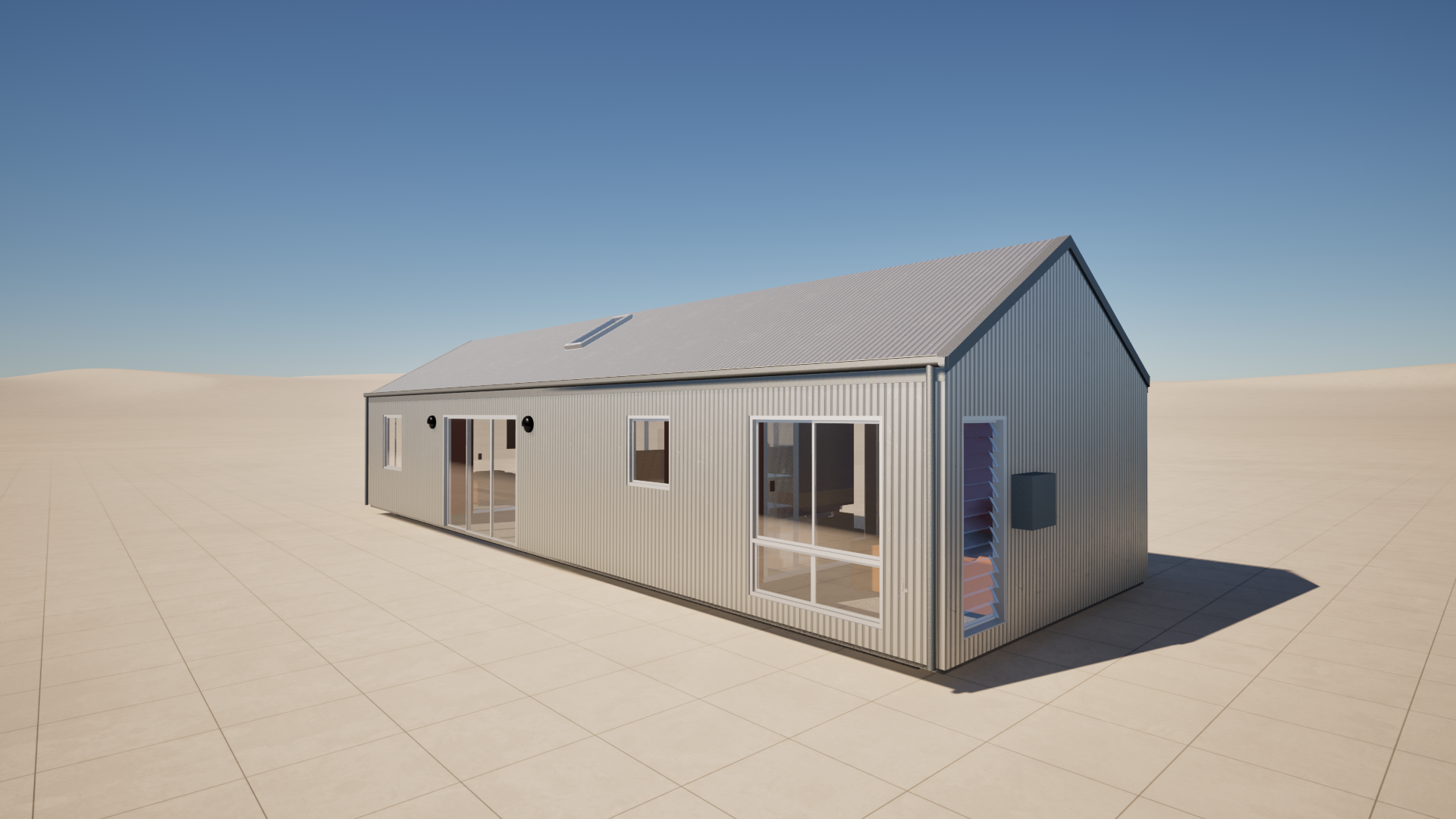

The Zinchab delivers a durable, compact chalet with raking ceilings and Zincalume cladding, perfect for off-grid or regional builds.

Key Features:

• 72 m² floor area
• Rooms: Master Bedroom, Bedroom 2, Bathroom/Laundry, Kitchen, Lounge
• Raking ceilings for enhanced space
• Modular construction for rapid assembly
• Off-grid compatible design

What’s Included (ZIP Download):

• mim_zinchab_Full.pdf
  1. Cover Sheet
  2. Site Plan (Preferred Orientation)

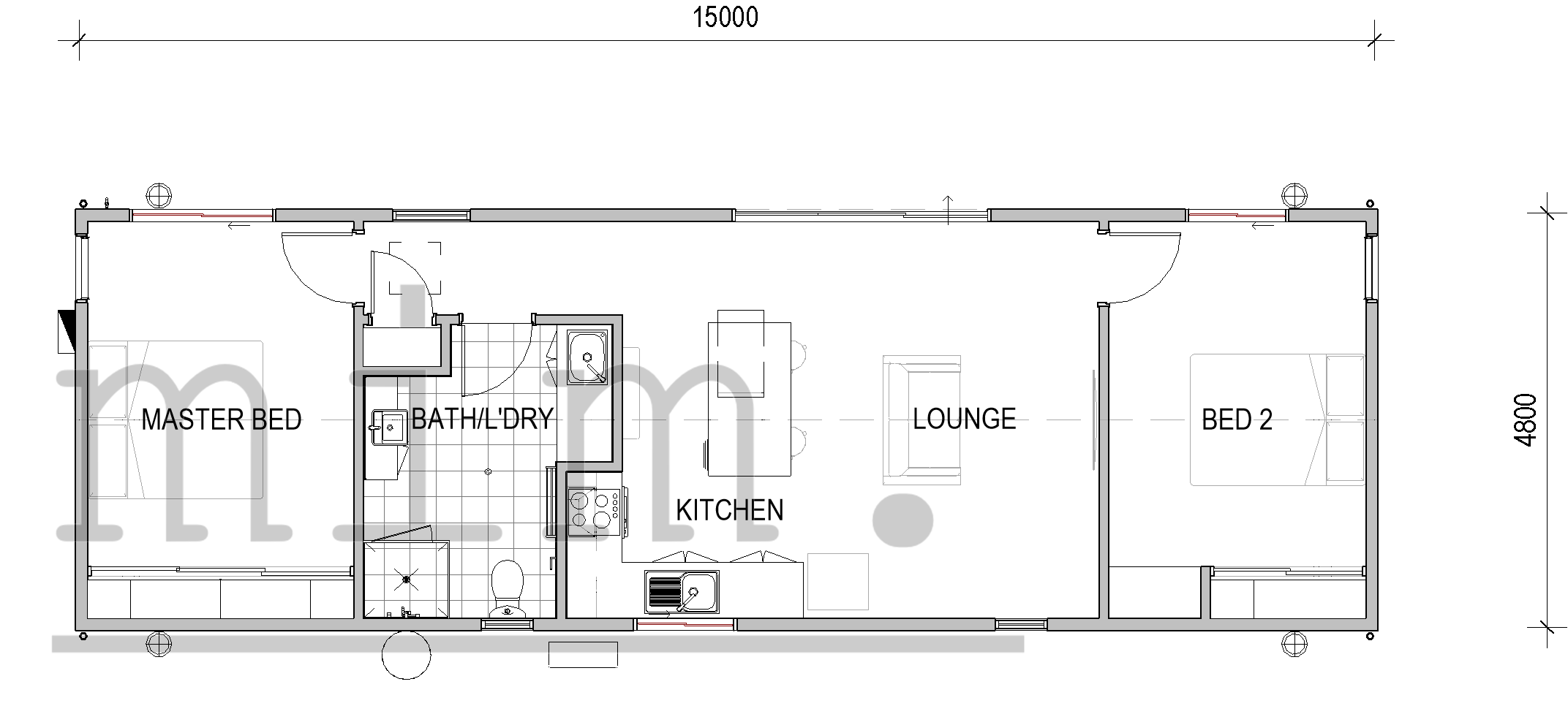

  3. Floor Plan
  4. Roof Plan

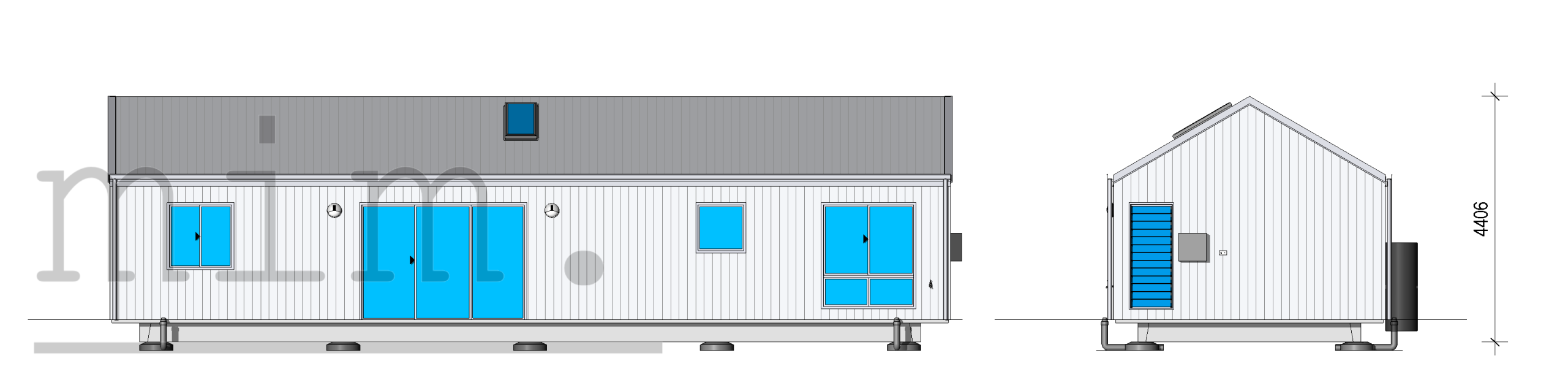

  5. Elevations
  6. Services Plan
  7. Internal Elevations 1
  8. Internal Elevations 2
  9. Internal Elevations 3
  10. Section
  11. Details 1
  12. Details 2
  13. Footing Layout
  14. Slab Plan
  15. Door Schedule
  16. Window Schedule
  17. Steel Flashing Schedule
• mim_Compliance_Checklist_Globall.pdf
• mim_FAQ.pdf
• mim_Material_Equivalents_Guide.pdf
• mim_ReadMeFirst_Global.pdf

Plans sold as-is. No customisation available. Verify local compliance via licensed professionals.

For full terms, see Plan License & Terms.
